China Customized Shape ESD Conductive PU Foam Sheets with 2-500mm Thickness and 10^3-10^6 Ω Surface Resistance for Electronic Component Packing wholesale

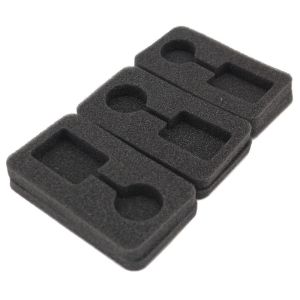

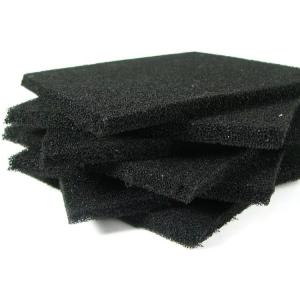

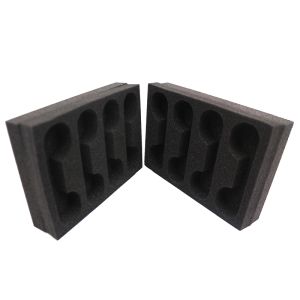

Customized Shape ESD Conductive PU Foam Sheets with 2-500mm Thickness and 10^3-10^6 Ω Surface Resistance for Electronic Component Packing

Name: Customized Shape ESD Conductive PU Foam Sheets with 2500mm Thickness and 103106 Ω Surface Resistance for Electronic Component Packing
Brand: HERZESD
Price: 15 USD

Ask Latest Price

Video Channel

Place of Origin :Shanghai, China

Brand Name :HERZESD

MOQ :500

Price :$15-20

Material :PU foam

Color :Black

Thickness :2-500mm

Surface Resistance :10^3-10^6 Ω

Volume Resistance :10^3-10^6 Ωcm

Density :25-27Kg/m3

Conductive Model :HZ-1203A

Semi-conductive Model :HZ-1203S

Dissipative Model :HZ-1203D

Conductive Color :Black

Semi-conductive Color :Black

Dissipative Color :Black/Pink

Conductive Surface Resistivity :10^3-10^6Ω

Semi-conductive Surface Resistivity :10^6-10^9 Ω

Dissipative Surface Resistivity :10^9-10^11 Ω

Contact Now

Add to Cart

View Product Description

Items	Technical Data
Items		Conductive	Semi-conductive		Dissipative
Model	HZ-1203A	HZ-1203S		HZ-1203D
Color	Black	Black		Black/Pink
Density	25-27Kg/m3
Surface Resistivity	10^3—10^6Ω	10^6—10^9 Ω	10^9—10^11 Ω
Volume Resistivity	10^3—10^6 Ω.cm	10^6-10^9Ω.cm	10^9—10^11 Ω.cm

Adantages

High Quality ESD Single side Glued Polyurethane Anti-static PU Foam for packing is best used for electronic products varying from computers to automotive parts. Along with offering superior cushioning, it eliminates and absorbs electrical charges, vibrations, and electro-shock static to protect products from being damaged internally during shipping.

1, Why You Need ESD Protect For Your Production Line? Electronic Components Or Assemblies At Risk From Electrostatic Discharges (ESD) Are Among Those Sensitive Elements Which Can Be Destroyed Or Damaged If The Permitted Levels Of Current Or Impact Energy Are Exceeded. As A Rule, These Are Always Semi-Conducting Components And Most Are Also Thick- And Thin-Film Construction Elements. This Type Of Construction Element Is Mostly Damaged Through Human Mishandling. A Human-Being Can Charge Several Thousands Of Volts Just By Walking. A Discharge Can Be Felt By Humans From Approximately 2000-3000 V, A Current Which Is Already Well Above The 'Tolerance Level' Of Many ESD Components. Before Buying Or Implementing ESD Safe Products One Needs Implementing An ESD Safe Procedure According To The ESD Standards IEC 61340 Or ANSI S2020 Which Is The Foundation Of ESD Preventive Protective Work And A Greater Guarantee Of Quality Assurance. Besides Our Anti-Static Conductive ESD Workstations We Offer An Extensive Range Of Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear, Antistatic ESD Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials, Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes, ESD Test & Measuring Equipment, ESD Trainings, ESD Support & ESD Audits. 2, Why You Choose HerzESD? HerzESD Strives To Serve Our Customers Better By Offering Correct And Clear Explanatory Answers. We Try To Do So, Even When Informing Our Customers Better, Means Contradicting A More Established But Sometimes Flawed Opinions On The Market. At HerzESD We Pride Ourselves On Ensuring The Only Correct ESD Solution. To Continue This Vision We Need Reliable ESD Manufacturers And Suppliers On Which We Can Always Count. HerzESD Is A Solid Partner And Together With Our International Partners We Stay Strong And Vigilant In Regards To Possible Improvements Or New Solutions In Tackling And Controlling Static Electricity.
